Long-running transaction streaming events

Objective

Report the progress of a slow computation while it runs: execute it in a long-running transaction method, raise events from inside the method, and refresh a progress bar and a status label in the solution UI when those events reach the frontend.

Source code for this example is in the example solution.

Feature highlight

A long-running transaction method is a transaction method decorated with @long_running. It runs asynchronously, so the frontend stays responsive and other methods can execute while it is still in progress. Instead of making the frontend poll the backend, such a method can raise events as it goes. The frontend subscribes to those events with a WebSocket listener and reacts as soon as they are pushed, which is what makes live progress reporting possible.

In this example, you learn how to:

• Turn a slow computation into a long-running transaction method with the @long_running decorator.

• Track the progress in typed step fields, such as a counter and a status string.

• Push progress updates to the frontend from inside the method with self.transaction.raise_event.

• Notify the frontend that the method has terminated with enable_termination_event=True.

• Subscribe to both event streams from the frontend with DashClient.create_event_listener.

• Wire callbacks that start the method and refresh the progress bar, the status label, and the button state on every event.

When you complete this example, you can expect the following output in the solution UI:

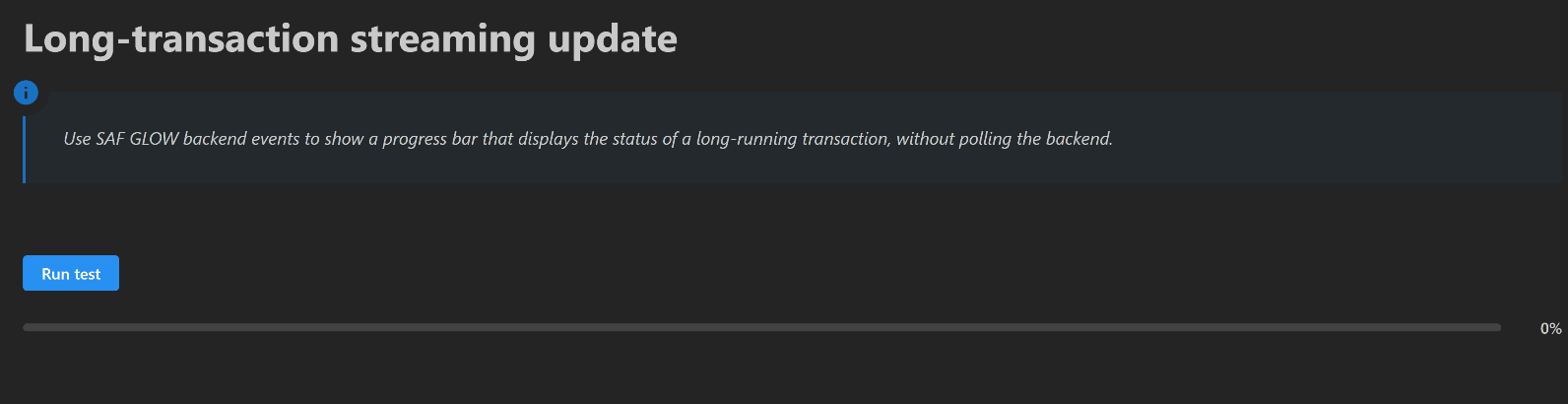

Progress bar before the transaction execution starts

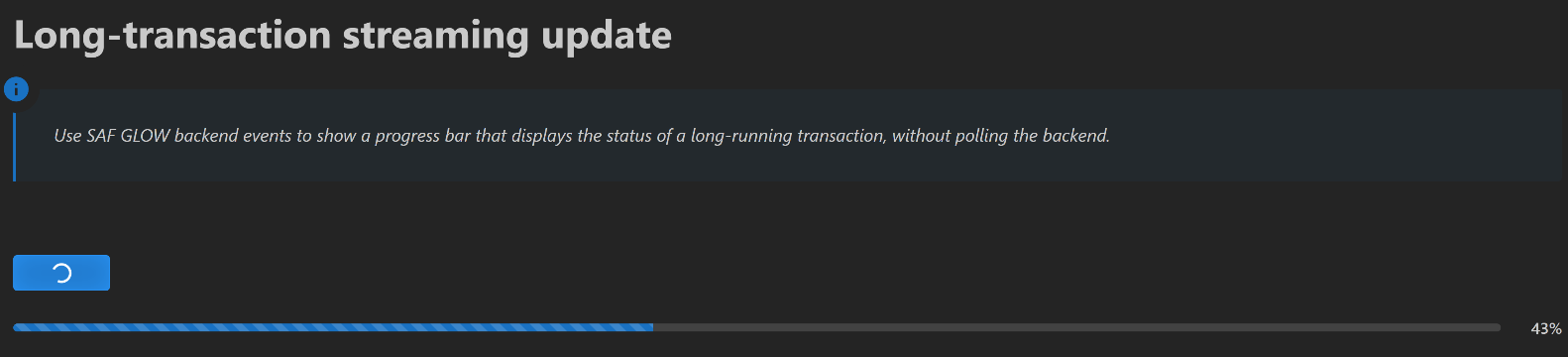

Progress bar while transaction execution is in progress

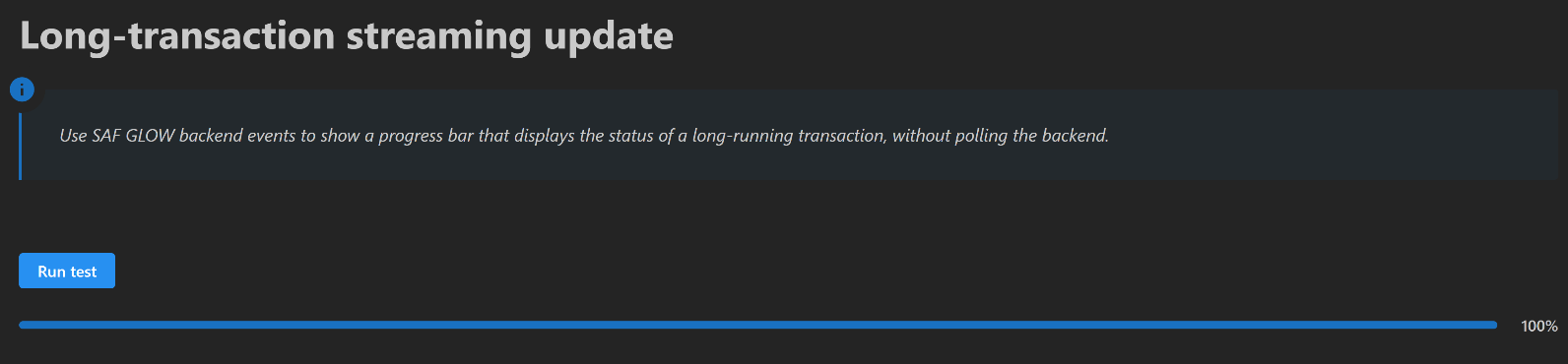

Progress bar when transaction execution is complete

Prerequisites

The long-running transaction API and the event API are provided in the GLOW Engine package, which is available by default in any SAF-based solution. The progress bar used in this example comes from the Dash Mantine Components library.

Coding

To stream the progress of a long-running transaction method to the solution UI, work through the following sequence of sections.

Backend

Create the solution definition.

Key concept — Long-running transaction method

A transaction method decorated with @long_running executes asynchronously. The frontend keeps responding to user actions, and the current status of the method can be queried at any time with step.get_long_running_method_state(<method_name>).

Key concept — Transaction event

Inside a transaction method, self.transaction.raise_event(message, stream_name=...) pushes an arbitrary JSON-serializable payload to the named event stream. Any frontend listening to that stream receives the payload immediately, so no polling is required.

Key concept — Termination event

Decorating a transaction method with @transaction(..., enable_termination_event=True) makes GLOW raise one final event when the method terminates, whether it succeeded or failed. The payload is a MethodState object, and the stream is named after the method, with underscores replaced by hyphens. For stream_updates, the termination stream is therefore stream-updates.

Define the step model

The step model for a simple step named FirstStep is defined in the first_step.py file.

• The step manages the state of the long transaction, using the current_increment attribute to count from 0 to 50.

• The number_of_increments attribute controls the actual number of increments to run, and the status string reflects when the latest increment was updated.

• The only defined transaction uses a for-loop to increment the counter and the status string every second, and raises a progress event on every iteration.

• The transaction enables the termination event, so the frontend is notified when the loop ends.

first_step.py

    from ansys.saf.glow.solution import StepModel, StepSpec, transaction, long_running
    import time
    import datetime

    PROGRESS_STREAM_NAME = "long-transaction-progress"
    TERMINATION_STREAM_NAME = "stream-updates"


    class FirstStep(StepModel):
        """Definition of a simple step."""

        status: str = "[]"
        number_of_increments: int = 50
        current_increment: int = -1

        @long_running
        @transaction(
            self=StepSpec(
                download=["number_of_increments"],
                upload=["status", "current_increment"],
            ),
            enable_termination_event=True,
        )
        def stream_updates(self) -> None:
            for i in range(self.number_of_increments):
                self.status = f"Update {i} at {_now()}"
                self.current_increment = i
                self.transaction.raise_event(
                    message={
                        "status": self.status,
                        "current_increment": self.current_increment,
                        "number_of_increments": self.number_of_increments,
                    },
                    stream_name=PROGRESS_STREAM_NAME,
                )
                time.sleep(1)
            self.status = f"Last updated at {_now()}"


    def _now():
        return datetime.datetime.now().strftime("%H:%M:%S")

Frontend

Expose the solution definition in the UI.

Define the step layout

The user interface has two widgets: a button that starts the transaction and a progress bar, with the completion percentage displayed next to it. The user is also kept informed with a dmc notification, which is updated on every event pushed by the backend.

layout from first_page.py

import json

from ansys.saf.glow.client import DashClient, callback
from ansys.saf.glow.solution import MethodState, MethodStatus
from dash_extensions.enrich import Input, Output, State, ctx, html, no_update
import dash_mantine_components as dmc

from ansys.solutions.abc.solution.definition import AbcSolution
from ansys.solutions.abc.solution.first_step import PROGRESS_STREAM_NAME, TERMINATION_STREAM_NAME

NOTIFICATION_ID = "long-transaction-notification"


def layout(project: AbcSolution):
    step = project.steps.first_step
    is_running = step.get_long_running_method_state("stream_updates").status == MethodStatus.Running
    progress = _to_percentage(step.current_increment + 1 if is_running else 0, step.number_of_increments)

    return html.Div(
        [
            html.H1("Long Transaction Streaming Update Example"),
            html.P(),
            dmc.Button("Run test", id="run-button", n_clicks=0, disabled=is_running, loading=is_running),
            dmc.Group(
                [
                    dmc.Progress(
                        id="completion-progress",
                        value=progress,
                        animated=is_running,
                        style={"flex": 1},
                    ),
                    dmc.Text(f"{progress}%", id="completion-progress-label", w=50, ta="right", fw=500),
                ],
                gap="sm",
                wrap="nowrap",
                align="center",
            ),
        ]
    )


def _to_percentage(completed_increments: int, number_of_increments: int) -> int:
    if number_of_increments <= 0:
        return 0
    return int((completed_increments * 100) / number_of_increments)

Mount the event listeners

• Event listeners are invisible WebSocket components that trigger callbacks when the backend pushes an event.

• The lifetime of a listener must match the lifetime of the components its callbacks write to. A Dash callback is dispatched with all of its inputs and outputs, so if an event arrives while one of them is not in the layout, the renderer raises a “nonexistent object was used in an Input/Output” error.

• This example therefore uses two sets of listeners: an application scoped set, mounted into html.Div(id="long-transaction-event-listeners-container") declared in the global layout, which only drives the notification; and a page scoped set, declared in the page layout, which drives the button and the progress bar.

• Nothing is lost when the user leaves the page: the notification keeps following the transaction, and layout rebuilds the button and the progress bar from the step fields when the user comes back.

page scoped listeners from first_page.py

# Inside layout(), next to the widgets they drive.
html.Div(
    [
        DashClient.create_event_listener(
            step, id="long-transaction-page-progress-listener", stream_name=PROGRESS_STREAM_NAME
        ),
        DashClient.create_event_listener(
            step, id="long-transaction-page-termination-listener", stream_name=TERMINATION_STREAM_NAME
        ),
    ]
)

application scoped listeners from first_page.py

@callback(
    Output("long-transaction-event-listeners-container", "children"),
    Input("url", "pathname"),
)
def mount_event_listeners(project: AbcSolution):
    step = project.steps.first_step
    return [
        DashClient.create_event_listener(
            step, id="long-transaction-progress-listener", stream_name=PROGRESS_STREAM_NAME
        ),
        DashClient.create_event_listener(
            step, id="long-transaction-termination-listener", stream_name=TERMINATION_STREAM_NAME
        ),
    ]

Key concept — Event listener

DashClient.create_event_listener(step, id=..., stream_name=...) returns a WebSocket component connected to the given event stream of the step. Its message property is a dictionary whose data key holds the JSON-encoded payload raised by the backend, so it can be used as the Input of any callback. Several listeners may subscribe to the same stream: each one gets its own event queue on the server.

Key concept — Callback

A callback is a Dash-decorated function that fires in response to a UI event. In a SAF solution, callbacks reach the backend through project.steps.<step_name>, read or write fields, and invoke transaction methods. No manual HTTP calls are needed.

Define the transaction start button

• The callback starting the long transaction resets the data in the step.

• It also shows a persistent loading notification so the user knows the transaction is running.

• To extend this example, you could add an input indicating the number of increments to be run.

• This data can be set as it is downloaded in the corresponding transaction.

transaction start button callback from first_page.py

@callback(
    Output("notification-container", "sendNotifications", allow_duplicate=True),
    Input("run-button", "n_clicks"),
    State("url", "pathname"),
    prevent_initial_call=True,
)
def start_long_running_transaction(n_clicks, project: AbcSolution):
    notification = no_update

    if ctx.triggered_id == "run-button" and n_clicks:
        step = project.steps.first_step
        step.current_increment = -1
        step.stream_updates()

        notification = [
            dict(
                title="Info",
                id=NOTIFICATION_ID,
                action="show",
                message="Streaming updates from the long running transaction...",
                autoClose=False,
                loading=True,
                color="blue",
                withCloseButton=False,
            )
        ]

    return notification

Key concept — Notification

dmc.NotificationContainer is declared once in the global application layout with the notification-container identifier. Callbacks write to its sendNotifications property to show (action="show") or refresh (action="update") a notification identified by its id, which makes it easy to keep a single notification alive for the whole duration of a long-running transaction.

Synchronize the notification with the transaction lifecycle

• This callback is driven by the application scoped listeners, so it only writes to notification-container, which belongs to the global layout and is therefore always present.

• Progress events refresh the in-progress notification with the latest status; the termination event replaces it with a success or failure message built from the MethodState payload.

• As a result the user keeps following the transaction from any page of the solution.

notification synchronization callback from first_page.py

@callback(
    Output("notification-container", "sendNotifications", allow_duplicate=True),
    Input("long-transaction-progress-listener", "message"),
    Input("long-transaction-termination-listener", "message"),
    prevent_initial_call=True,
)
def sync_notifications(progress_message, termination_message):
    notification = no_update

    if ctx.triggered_id == "long-transaction-progress-listener" and progress_message:
        update = json.loads(progress_message["data"])
        progress = _to_percentage(update["current_increment"] + 1, update["number_of_increments"])
        notification = [
            dict(
                title="Info",
                id=NOTIFICATION_ID,
                action="update",
                message=f"{update['status']} ({progress}%)",
                autoClose=False,
                loading=True,
                color="blue",
                withCloseButton=False,
            )
        ]
    elif ctx.triggered_id == "long-transaction-termination-listener" and termination_message:
        method_state = MethodState.model_validate_json(termination_message["data"])
        succeeded = method_state.status == MethodStatus.Completed
        notification = [
            dict(
                title="Success" if succeeded else "Error",
                id=NOTIFICATION_ID,
                action="update",
                message=(
                    "Successfully ran stream_updates."
                    if succeeded
                    else "Failed to run stream_updates. Please check the logs."
                ),
                color="green" if succeeded else "red",
                autoClose=5000 if succeeded else False,
                withCloseButton=True,
                loading=False,
            )
        ]

    return notification

Synchronize the controls with the transaction lifecycle

• This callback is driven by the page scoped listeners, so every one of its inputs and outputs belongs to the page layout and it can never be triggered while its components are unmounted.

• It reacts to three inputs, dispatched on ctx.triggered_id: the click on the button, which disables it and starts the animated progress bar; a progress event, which advances the progress bar and refreshes the percentage label; and the termination event, which re-enables the button and completes the bar.

• The progress stream and the termination stream are independent, so their events are not ordered relative to each other. The disabled state of the button is read back as a State and used to discard progress events that arrive after the transaction has ended.

• Progress events carry everything the frontend needs, so no round trip to the backend is required. Every output that must not change is left to no_update.

controls synchronization callback from first_page.py

@callback(
    Output("run-button", "disabled", allow_duplicate=True),
    Output("run-button", "loading", allow_duplicate=True),
    Output("completion-progress", "animated", allow_duplicate=True),
    Output("completion-progress", "value", allow_duplicate=True),
    Output("completion-progress-label", "children", allow_duplicate=True),
    Input("run-button", "n_clicks"),
    Input("long-transaction-page-progress-listener", "message"),
    Input("long-transaction-page-termination-listener", "message"),
    State("run-button", "disabled"),
    prevent_initial_call=True,
)
def sync_controls(n_clicks, progress_message, termination_message, is_running):
    disable_run_button, loading_run_button = no_update, no_update
    animated, progress, progress_label = no_update, no_update, no_update

    if ctx.triggered_id == "run-button" and n_clicks:
        disable_run_button, loading_run_button = True, True
        animated, progress, progress_label = True, 0, "0%"
    elif ctx.triggered_id == "long-transaction-page-progress-listener" and progress_message and is_running:
        update = json.loads(progress_message["data"])
        progress = _to_percentage(update["current_increment"] + 1, update["number_of_increments"])
        progress_label = f"{progress}%"
    elif ctx.triggered_id == "long-transaction-page-termination-listener" and termination_message:
        method_state = MethodState.model_validate_json(termination_message["data"])
        disable_run_button, loading_run_button = False, False
        animated = False
        if method_state.status == MethodStatus.Completed:
            progress, progress_label = 100, "100%"

    return disable_run_button, loading_run_button, animated, progress, progress_label

Now that your implementation is complete, continue to the Testing section.

Testing

Finally, test your implementation to confirm it works as expected.

Run the solution and compare your results with the results shown in the Feature highlight section.
