Solution REST API#

SAF GLOW Engine’s Solution API server serves a REST API derived from a given solution that exposes a view of project data and enables transaction methods to be executed.

The GLOW API server’s responsibilities include:

  • Reading and writing project data to / from project storage

  • Starting method execution

  • Recording state management information about fields, methods, and product instances

Interactive API#

The Solution API server implements a solution-specific REST API that is consumed by the Solution UI server (a Dash UI server by default, and potentially other clients) and exposed in a documented, interactive OpenAPI UI.

Note

The OpenAPI UI is intended for use by solution developers and dev-ops. Solution end-users are not expected to access this UI.

Access the OpenAPI UI#

To access the REST API UI:

  1. After running glow_engine api, review the console output.

  2. Find the line containing Running GLOW API server on.

    The URL on this line is address of the Solution API server.

  3. Enter the URL into your browser and append /docs to it.

The UI that opens enables invocation of the REST API, providing a mechanism both for testing and diagnosing issues in the running solution and for documenting the API.

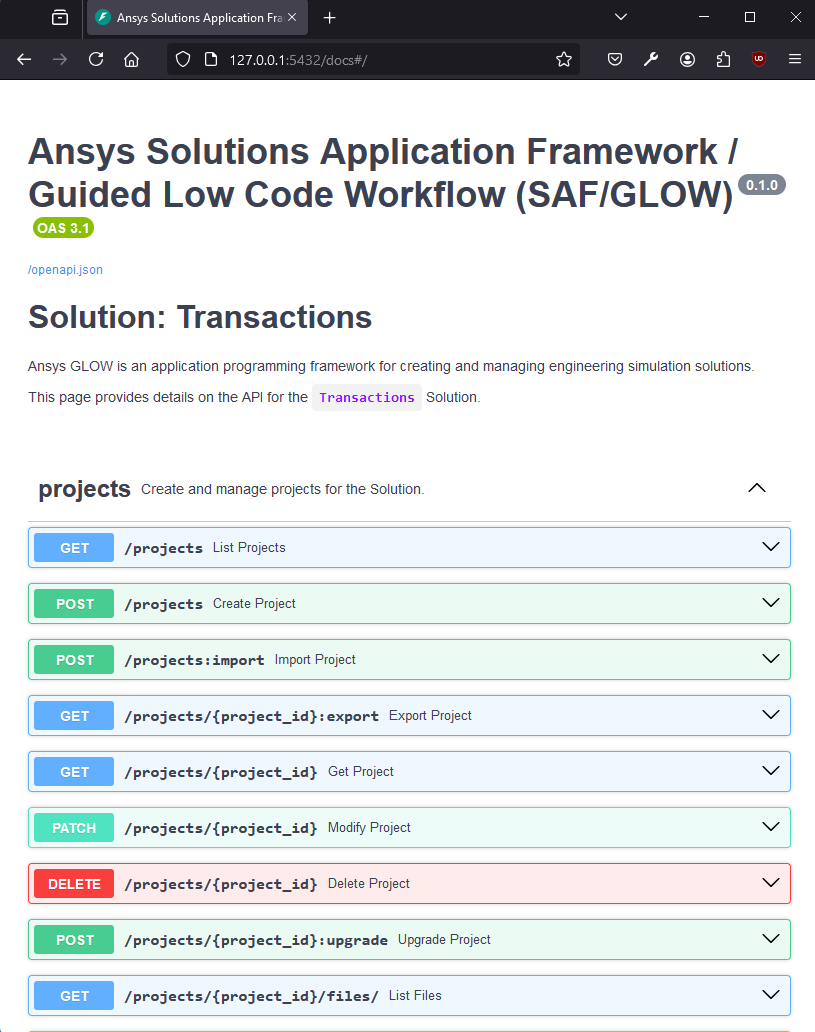

Invoke a route in the OpenAPI UI#

To invoke a particular route using OpenAPI:

  1. Navigate to the route of interest.

  2. Expand the route.

  3. Click the Try it out button.

../../../_images/openapi.png
